Utilizes perimeter-contact surface drum winding to drive finished reels at constant peripheral line speed. Completely avoids excessive shaft-center torque, preventing core crushing, inner-layer cinching, and substrate deformation on delicate, low-stretch materials.
Configured with pneumatically engaged circular rotary shear blades maintaining continuous cutting pressure against bottom anvils. Delivers crisp, burr-free slitting edges across fibrous nonwovens and compressible foam substrates without edge fraying.
Integrates a responsive edge position control (EPC) unit to detect and dynamically correct edge wander on flexible parent webs. Compensates for irregular master roll edges to ensure straight web delivery into the slitting zone.
Controlled via a centralized PLC terminal with an intuitive touchscreen interface. Allows operators to adjust line speed and pneumatic pressure effortlessly, accelerating slit-width changeovers and reducing machine setup downtime.

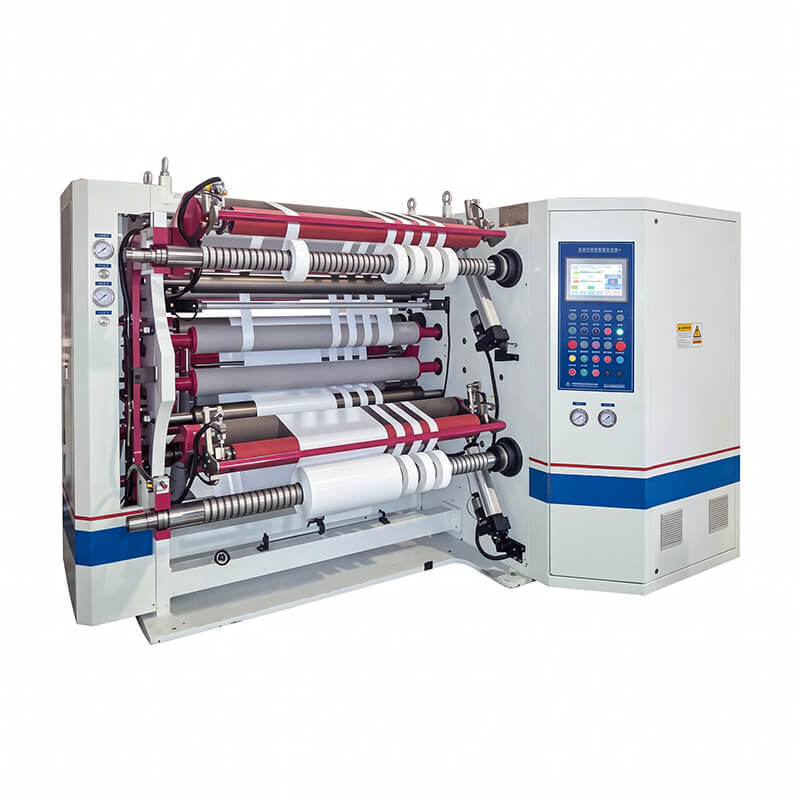

| Model of slitter rewinder | MEAREG MG-1050DSR |
|---|---|
| Compatible substrate materials | Foam sheets, nonwoven fabric, thin paper, soft flexible substrates |
| Maximum web processing width | 1050 mm |
| Rewinding mechanism principle | Friction-driven surface winding geometry |
| Slitting knife assembly | Pneumatically controlled rotary shear knife unit |
| Web guiding system | Automatic high-precision EPC edge position correction |
| Control interface | PLC-based centralized automation with touchscreen HMI |
| Core protection design | Zero-center-torque anti-deformation winding profile |
| Width adjustment mechanism | Quick lateral positioning slitting knife rail |
| Operating speed regulation | Variable frequency stepless speed control |
| Target converting sectors | Flexible packaging, soft material converting, industrial printing |
| Manufacturing compliance | CE marked, ISO 9001 certified industrial execution |
Factory-Configurable Online Upgrades:
Note: Optional automation accessories are modularly designed to fit existing converting workshop layouts.
A: Center winding applies torque directly through the roll core, which easily crushes cores and stretches compressible materials like foam or nonwovens. Surface winding applies motive force along the outer circumference of the rolls, maintaining uniform density without stressing the core.
A: The pneumatic cylinders supply constant, calibrated scissor-shearing contact between the rotary upper knife and bottom anvil cylinder, slicing entangled synthetic fibers cleanly without generating loose threads or fraying.
A: As a direct equipment builder in Guangdong, MEAREG tailors roller surface coatings (such as anti-stick silicone or knurled traction finishes), slitting widths, and line voltages to client specifications. Every unit undergoes live material Factory Acceptance Testing (FAT) before export packing.
