Features upper and lower independent rewinding shafts driven by separate vector drives. Each shaft maintains autonomous closed-loop tension regulation, eliminating tension interference across staggered reels and preventing roll dishing.
Equipped with heavy-duty hydraulic clamping arms that lift heavy master rolls directly from floor level or pallet dollies. Eliminates overhead crane dependencies and dramatically reduces heavy-roll loading cycle times.
Accommodates interchangeable rotary shear knives and precision razor blades. Allows operators to switch cutting modes rapidly according to substrate shear resistance, ensuring clean edges on flexible films and laminated papers alike.
Integrates a responsive automatic EPC edge alignment system with quick-release pneumatic chucks. Corrects lateral web wandering dynamically while streamlining finished roll unloading to maximize overall equipment effectiveness (OEE).

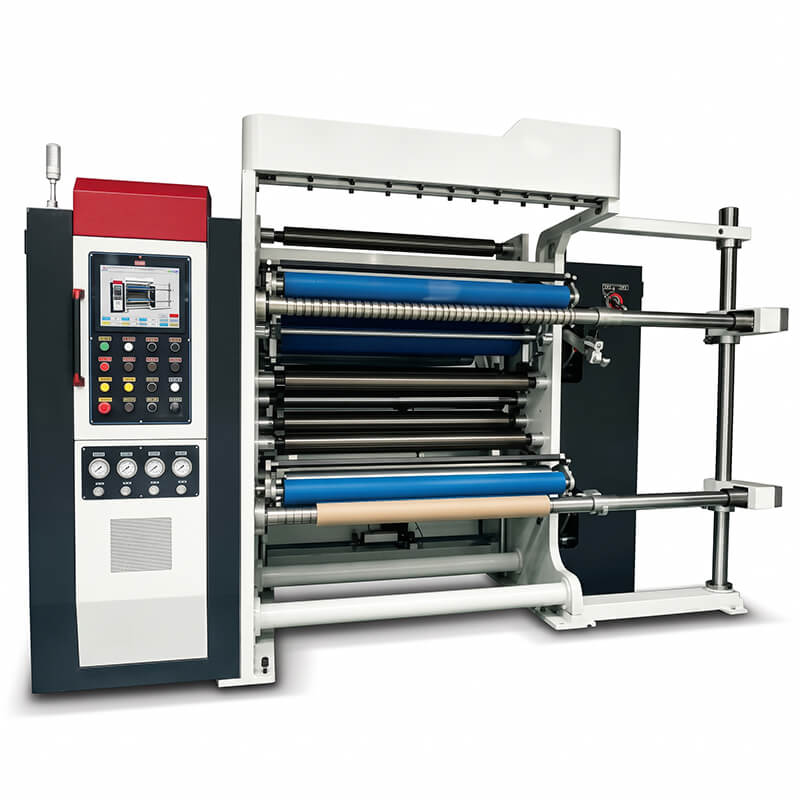

| Model of slitter rewinder | MEAREG MG-1300DS |
|---|---|
| Processed substrate materials | Plastic films, label stock, laminated composites, technical paper |
| Maximum web processing width | 1300 mm |
| Rewinding configuration | Dual independent center-winding shafts |
| Unwind station mechanism | Shaftless hydraulic lift and clamping system |
| Supported slitting modes | Rotary shear cutting / Razor blade slitting (Interchangeable) |
| Tension control topology | Separate closed-loop tension regulation per rewind shaft |
| Operating speed profile | Stable high-speed continuous converting |
| Tooling width adjustment | Rapid lateral position adjustment assembly |
| Roll handling efficiency | Quick-change pneumatic chucking mechanism |
| Web alignment execution | Automatic high-precision EPC edge correction |
| Primary industry sectors | Flexible packaging, label converting, printing industries |
| Manufacturing compliance | CE-marked, ISO 9001-certified industrial execution |
Factory-Configurable Online Upgrades:
Note: Optional automation enhancements are integrated directly into the centralized Siemens/Mitsubishi PLC control platform.
A: Because each rewind shaft is governed by its own independent load cell feedback and drive motor, differences in roll diameters or material thickness variations between the upper and lower shafts do not create uneven winding tension or roll distortion.
A: The integrated floor-pickup hydraulic arms clamp and raise heavy parent rolls directly without manual bar insertion or overhead crane operations, protecting operators from strain while accelerating roll loading cycles.
A: As a direct equipment builder in Guangdong, MEAREG customizes slitting widths, knife assemblies, and shaft diameters to your process specifications. Every machine undergoes material Factory Acceptance Testing (FAT) with client substrates before export packing and on-site commissioning.
