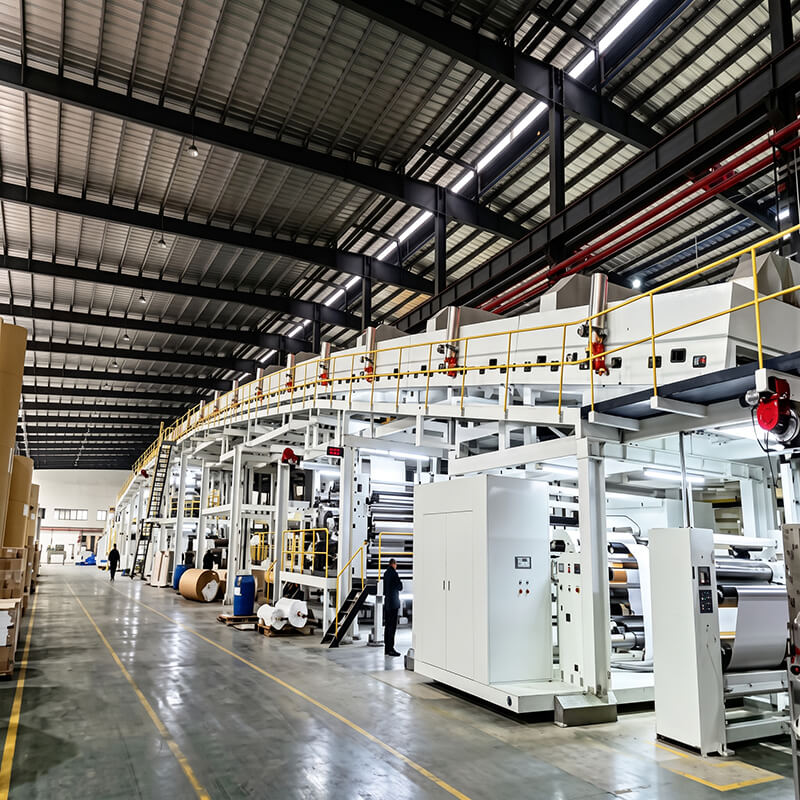

MEAREG MG-1429TFC Thermal Film Coating Machine

Thermal-Sensitive Low-Temperature Gradient Dryer

Features an extended air-flotation drying tunnel with multi-stage zoned temperature regulation (40–80°C). High-volume, gentle laminar air circulation evaporates moisture efficiently at 300 m/min without triggering premature discoloration or chemical activation on thermal-sensitive coating layers.

Micro-Metering Precision Coating Applicator

Equipped with high-precision micro-gravure and reverse-roll metering systems designed for low-viscosity aqueous emulsions and thermal topcoats. Delivers sub-micron layer uniformity across the full 2900 mm span without streaks, micro-pinholes, or flow-line defects.

Ultra-Wide Synchronized Closed-Loop Tension

Driven by multi-axis servo motors, pneumatic low-friction dancer rollers, and precision-balanced aluminum guide rollers. Prevents thermal elongation, baggy edges, and diagonal wrinkling across flexible polymer films (PP/BOPP/PET) and paper substrates.

Target Web Substrates

• BOPP & PP Films: Matte and clear biaxially oriented polypropylene films for thermal packaging and laminating.
• PET Polyester Films: Optical and thermal-stabilized polyester webs for heat-sealable security films.
• Base Paper Webs: Lightweight calendered paper rolls converted into direct thermal paper.
• Cast Polypropylene (CPP): Heat-sealable flexible packaging layers and protective skins.

Thermal Converting Sectors

• Thermal Paper Manufacturing: Applying chemical color-forming active layers on POS receipts and logistics waybill papers.
• Thermal Lamination Films: Coating low-temperature heat-activated EVA adhesive onto BOPP film rolls for graphic arts.
• Heat-Sealable Packaging Webs: Converting food wrapping films and flexible barrier pouches with uniform thermal seal layers.
• Security & Anti-Counterfeit Media: Precision coating of temperature-indicating functional lacquers on security labels.

Q: How does the drying system prevent premature thermal activation on heat-sensitive coatings?

A: Active thermal chemical layers develop color at temperatures starting around 60–70°C. The MG-1429TFC utilizes high-volume, low-temperature air impingement drying across multiple zones, precisely controlling web surface temperature below thermal reaction thresholds while fully evaporating carrier water.

Q: What web handling measures ensure wrinkle-free transport across ultra-wide 2900 mm film spans?

A: Transporting 2900 mm wide thin films at 300 m/min requires rigid web stability. The line employs precision-balanced, hard-anodized aluminum rollers, segmented expander rollers, and multi-stage closed-loop vector servo tension controls that isolate tension variances across drying zones.

Q: What turnkey support and factory testing does MEAREG provide for global clients?

A: As an integrated machinery builder in Guangdong, MEAREG supplies full line layout blueprints, thermal piping designs, and exhaustive Factory Acceptance Testing (FAT) with client substrate rolls prior to export packing. We provide experienced field engineers worldwide for full on-site installation and commissioning.
