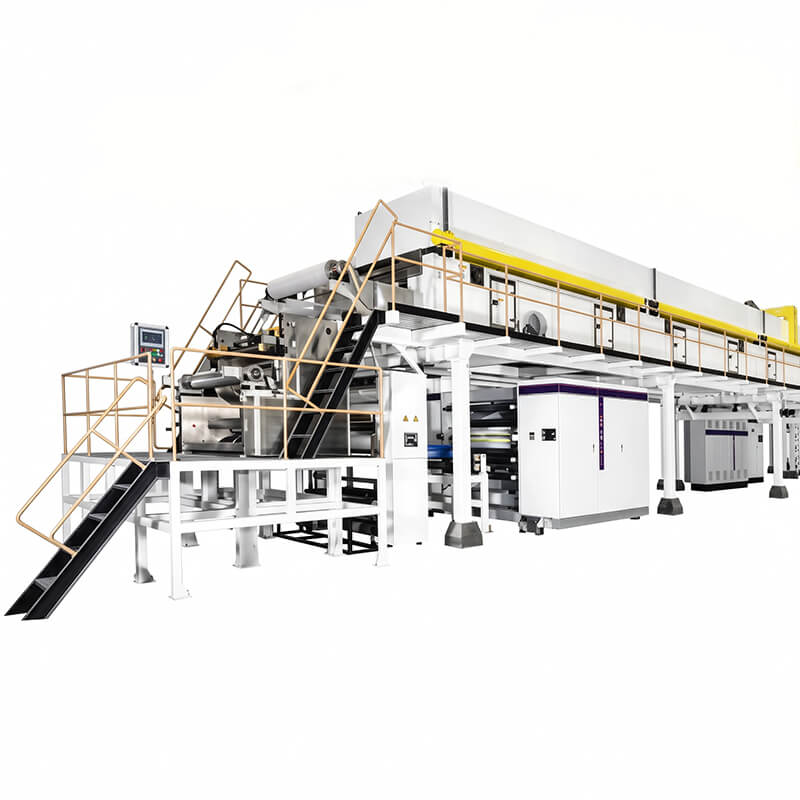

Integrates precision silicone release coating and solvent/water-based adhesive coating heads within a single machine chassis. Enables rapid process changeovers between siliconizing and adhesive coating without rewiring or dismantling the web line.
Equipped with an extended tunnel drying oven utilizing multi-stage independent temperature controls and balanced aerodynamic air nozzles. Guarantees complete silicone curing and blister-free adhesive moisture evacuation at line speeds up to 650 m/min.
Employs synchronized multi-axis servo drives and high-frequency load cells across wide web spans (1400–2900 mm). Stabilizes web transit, eliminating paper web wrinkles, edge curl, and elongation during thermal transition zones.
Unifies turret unwinding, coating application, tunnel curing, web re-humidification, and surface rewinding into an uninterrupted line. Delivers exceptional overall equipment effectiveness (OEE) for high-output industrial paper converting.
| Engineering Parameter | Technical Metric / Machine Capability |
|---|---|
| Model Designation | MEAREG MG-1429SC |
| Target Substrate Type | Paper substrates (Glassine, CCK, Kraft, Clay-coated paper) |
| Adjustable Working Width | 1400 mm – 2900 mm |
| Operational Coating Line Speed | 50 – 650 m/min |
| Integrated Coating Functional Units | Combined silicone release coating & adhesive coating |
| Drying Chamber Construction | Extended multi-zone high-efficiency tunnel drying oven |
| Tension Control Architecture | Multi-section closed-loop vector tension synchronization |
| Web Handling System | Anti-deflection precision guide rollers with automatic web guiding (EPC) |
| Production Line Scope | Continuous integrated unwinding, coating, drying, and rewinding |
| Manufacturing Quality Standards | CE-marked, ISO 9001-certified industrial execution |
Turnkey Production Line Upgrades:
Note: All auxiliary modules are centrally coordinated through the main PLC touchscreen console with Industry 4.0 data export interfaces.
A: The MG-1429SC integrates dedicated silicone and adhesive delivery stations along a unified web line. Instead of investing in two separate production lines, operators can alternate between siliconizing release paper and applying adhesive coatings using quick-wash fluid systems and automated roll positioning.
A: Converting wide paper (up to 2900 mm) at 650 m/min demands ultra-precise tension isolation. The line employs precision-balanced carbon-fiber or anti-deflection steel rollers, multi-stage closed-loop vector drives, and floating tension rollers that absorb web elasticity changes across different drying temperature zones.
A: MEAREG designs and manufactures complete turnkey coating lines in Guangdong. We supply comprehensive mechanical layouts, electrical schematics, and foundation drawings, followed by full Factory Acceptance Testing (FAT) with client paper rolls before seaworthy container packaging and global on-site commissioning.
Planning a customized release paper or adhesive paper production line? Contact MEAREG's senior engineering team to discuss your web width specifications, drying oven lengths, and line speeds, or to request a comprehensive factory quotation.
