Constructed with a high-rigidity normalized steel frame housing dynamically balanced aluminum guide rollers. Effectively dampens high-speed mechanical resonance to eliminate web flutter and ensure precise slit width stability.
Configured with dedicated vector drives and high-sensitivity load cells on both unwinding and rewinding stations. Dynamically regulates tension across varying roll diameters, preventing stretching, sagging, or edge deformation on thin polymer films.
Features a modular tooling carriage accommodating both rotary shear knives and precision razor blades. Allows rapid switching between shearing modes to match the specific cut resistance of brittle, ductile, or multi-layer barrier substrates.
Integrates an automatic optical/ultrasonic EPC edge alignment unit with active high-voltage ionizing bars. Continuously corrects lateral web travel while neutralizing electrostatic charges to prevent film inter-layer adhesion and particle attraction.

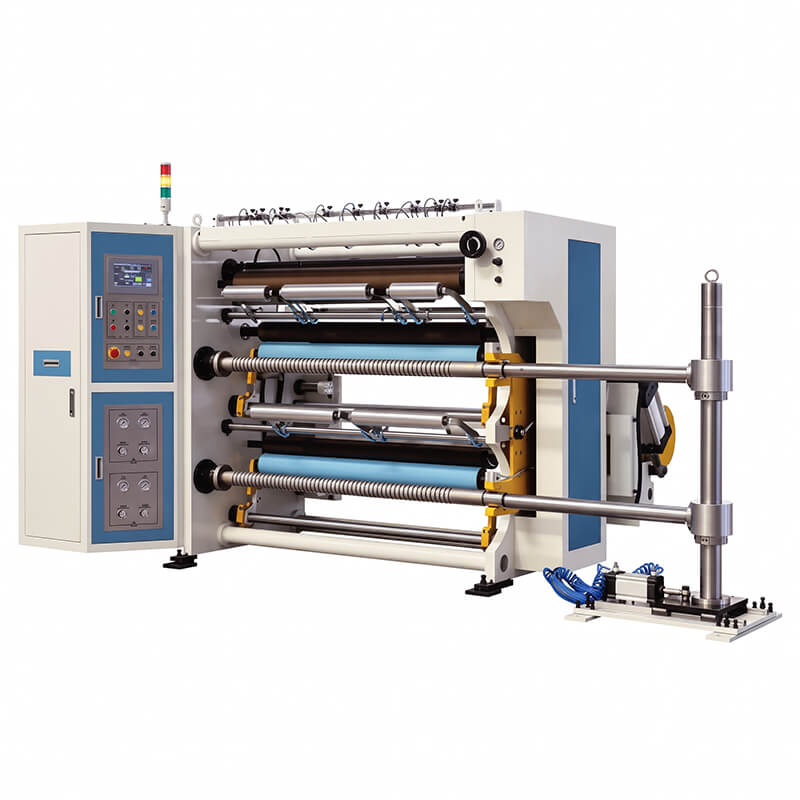

| Model of film slitting machine | MEAREG MG-1200FDS |
|---|---|
| Processed film substrates | BOPP, PET, CPP, PVC, PE, and multilayer barrier films |
| Maximum web processing width | 1200 mm |
| Structural frame architecture | High-rigidity vibration-damped industrial steel frame |
| Operating speed profile | Stable high-speed continuous web converting |
| Tension control topology | Independent closed-loop tension regulation with load cell feedback |
| Supported slitting modes | Rotary shear cutting / Razor blade slitting (Interchangeable) |
| Web alignment mechanism | Automatic high-precision EPC edge position correction |
| Electrostatic control | Active multi-point ionizing static elimination system |
| Guide roller specification | Hard-anodized, dynamically balanced low-inertia aluminum rollers |
| Slitting width adjustment | Rapid lateral positioning tool holder rail |
| Target converting industries | Flexible packaging, label manufacturing, technical film converting |
| Manufacturing compliance | CE marked, ISO 9001 certified industrial execution |
Factory-Configurable Online Upgrades:
Note: Optional automation enhancements are fully integrated into the centralized PLC touchscreen control system.
A: Razor blade slitting in grooved rollers is optimal for thin, high-clarity films like BOPP and PET under 50 μm to achieve mirror-smooth edges. Rotary shear slitting provides higher shearing force and longer blade service life for heavier-gauge or composite barrier films like CPP and laminates.
A: Rapid film travel generates substantial electrostatic friction. The active ionizing bars continuously neutralize surface charges at critical web release points, preventing airborne particulate attraction, operator static shock, and roll inter-layer blocking.
A: As an experienced equipment builder in Guangdong, MEAREG customizes web widths, knife configurations, and power voltages to your exact plant requirements. Every slitter undergoes material Factory Acceptance Testing (FAT) with client substrates before export packaging and on-site commissioning.
