Technical Case Study: Achieving ±0.1 mm Precision and ≥99% Yield in High-Speed Lithium Battery Separator Slitting

1. Technical Challenges in Separator Converting

Lithium battery separators—including ultra-thin polymer base films (PE/PP) and inorganic ceramic-coated composite films—present notable physical challenges during wide-width roll-to-roll slitting:

• Thermal and Tension Elongation: Because base films can be as thin as 9–12 μm, slight tension fluctuations during winding cause web stretch, neck-in, or wrinkling.
• Ceramic Layer Brittleness: Improper slitting blade geometry or mechanical vibration can induce micro-cracks along the ceramic layer, generating conductive powder dust that threatens battery cell safety.
• Edge Burr and Slitting Tolerances: Uneven slitting edges cause internal short circuits in winding-type battery cells. Modern battery manufacturers require slit width tolerances controlled within ±0.1 mm.

2. Mechanical & Tension Engineering (MG-1300DF Architecture)

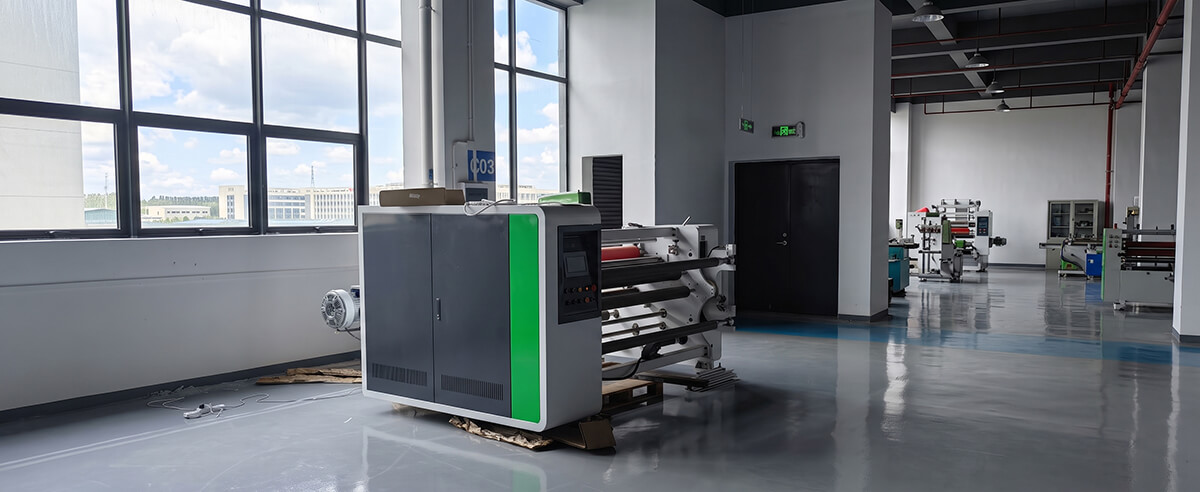

Engineered at MEAREG's Huizhou manufacturing base in Guangdong, the MG-1300DF incorporates high-rigidity structural steel side frames to absorb high-frequency vibrations at mechanical speeds up to 300 m/min.

Web transport is supported by dynamically balanced aluminum guide rollers with ultra-low inertia ceramic coatings, minimizing rolling drag and electrostatic accumulation. The unwinding system features a shaftless clamping frame handling master roll diameters up to 850 mm, guided by an optical EPC edge-correction unit with ±0.2 mm guiding response.

3. Real-World Performance & Technical Parameters

During Factory Acceptance Testing (FAT) on a 1000 mm master roll of ceramic-coated separator, the MG-1300DF completed continuous rewinding of 35 mm finished slit rolls. The key recorded parameters are detailed below:

4. In-Line CCD Visual Inspection & Debris Management

To eliminate manual inspection downtime, the line integrates an optional overhead industrial CCD visual camera system. The optical modules detect surface anomalies down to 0.1 mm²—including surface pinholes, black spots, scratches, and foreign contamination—marking coordinates in real-time on the touch-screen HMI.

Additionally, a negative-pressure brush vacuum unit operates directly above the blade contact zone, extracting ceramic powder debris to prevent particle migration onto the finished rewound rolls.

5. Conclusion & Global Turnkey Availability

Through robust tension feedback, modular blade holders, and high-precision electronic guidance, the MEAREG MG-1300DF provides an industrial converting solution tailored for Tier-1 lithium separator producers. MEAREG provides full turnkey engineering, including pre-shipment FAT roll trials, vacuum export packaging, on-site commissioning, and lifecycle spare parts supply across Southeast Asia, Europe, Russia, and Africa.
